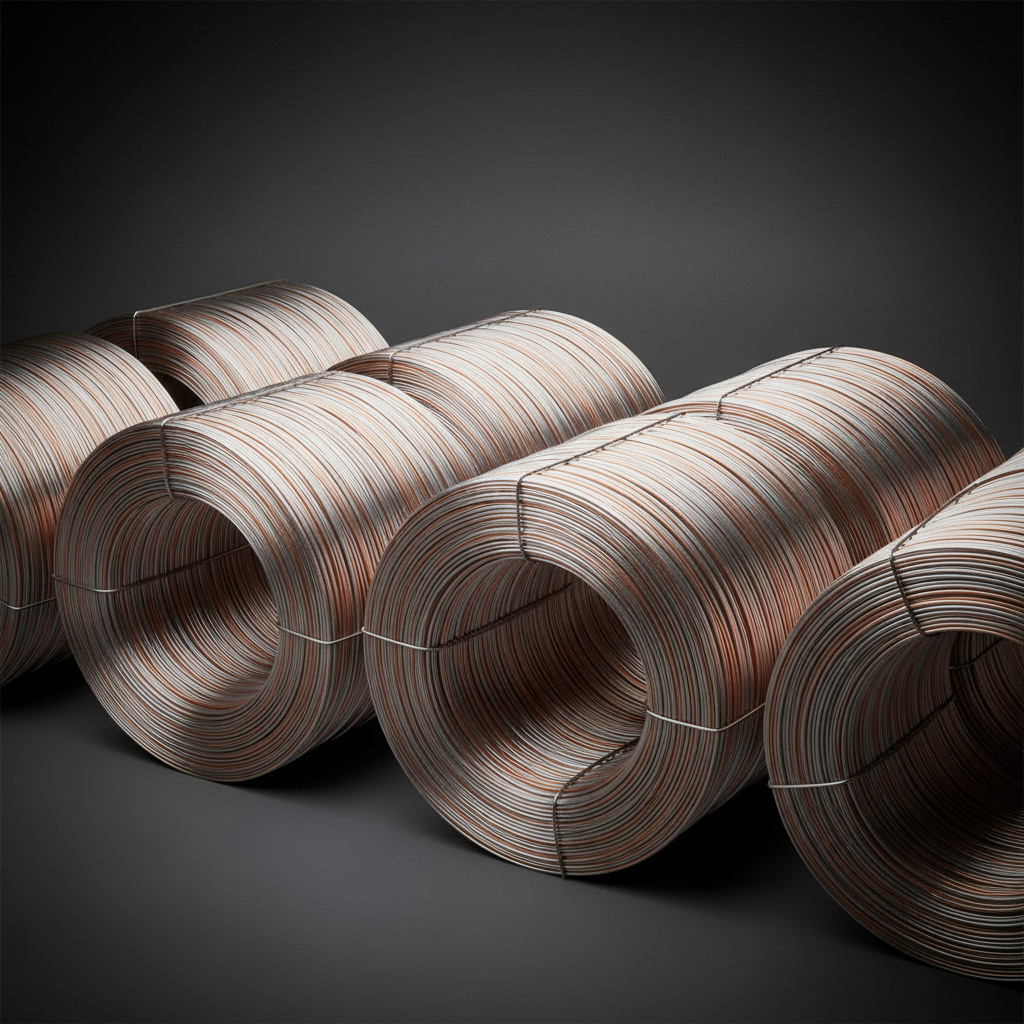

Precision Copper Nickel Wire for Heat Tracing.
Engineered for exacting tolerances. High resistivity, superior temperature stability, and uncompromised reliability for critical industrial applications.
Engineered for Extremes
The NC Series represents the pinnacle of copper-nickel metallurgy, designed specifically to meet the stringent demands of commercial and industrial heat tracing systems.
High Resistivity
Engineered to deliver consistent electrical resistance, crucial for maintaining exact thermal outputs across extended lengths of heat tracing cable.
Corrosion Resistance
The optimized nickel-copper matrix provides superior defense against oxidation and harsh industrial chemicals, ensuring long-term operational integrity.
Temperature Stability
Maintains predictable structural and electrical characteristics even during continuous operation at elevated temperatures up to 400°C.
Consistent Quality
Manufactured with strict metallurgical tolerances. Every spool is tested to ensure uniform diameter and resistivity, eliminating cold spots.
Technical Specifications
Standard parameters for the NC Series. Detailed datasheets and custom gauge variations available upon request.
| Alloy Grade | Nominal Ni Content | Resistivity (μΩ·cm) | Max Operating Temp (°C) | Density (g/cm³) |
|---|---|---|---|---|
| NC010 | 10% | 15 | 400 | 8.90 |
| NC012 | 12% | 18 | 400 | 8.90 |
| NC015 | 15% | 23 | 400 | 8.90 |
| NC020 | 20% | 30 | 400 | 8.90 |
| NC025 | 25% | 35 | 400 | 8.90 |
| NC030 | 30% | 40 | 400 | 8.90 |
| NC035 | 35% | 44 | 400 | 8.90 |
| NC040 | 40% | 48 | 400 | 8.90 |
| NC050 | 44% | 49 | 400 | 8.90 |

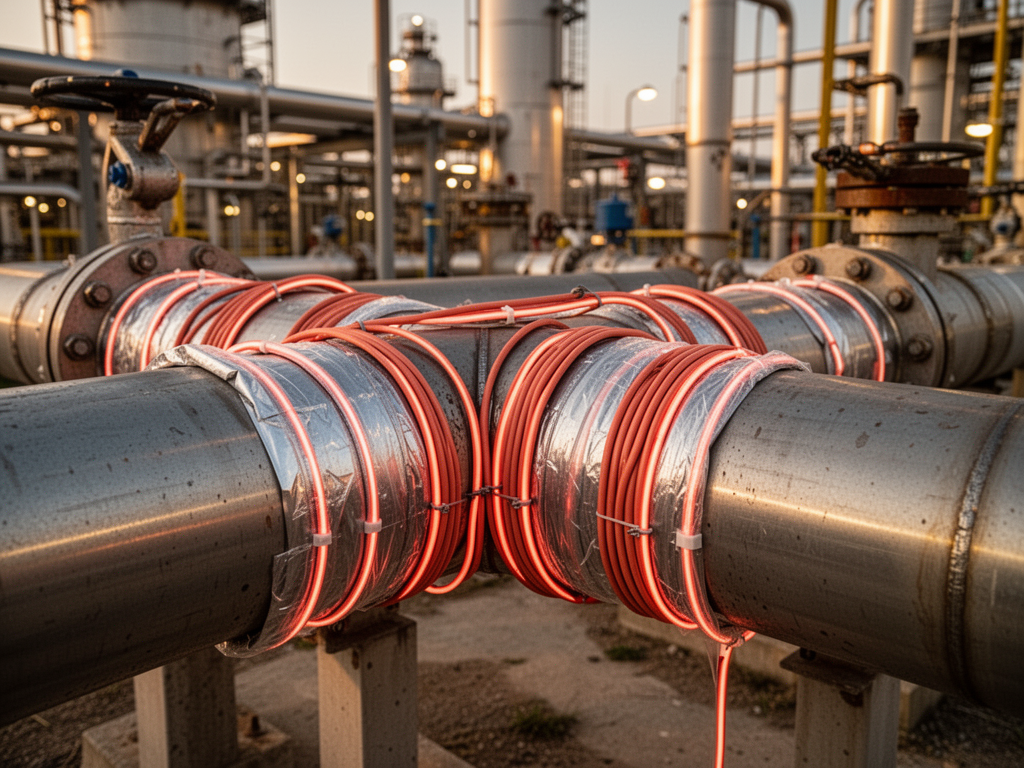

Critical Heat Tracing Applications
Our NC Series alloy wire forms the heating core of premium self-regulating and constant-wattage trace heating cables utilized globally across heavy industry and commercial construction.
- Pipeline Freeze Protection
- Process Temperature Maintenance
- Industrial Tank Heating
- Roof & Gutter De-icing Systems
- Commercial Floor Heating
Request a Quote or Sample
Discuss your specific heat tracing requirements with our metallurgy engineers. Custom gauge tolerances and specialized spooling are available.
